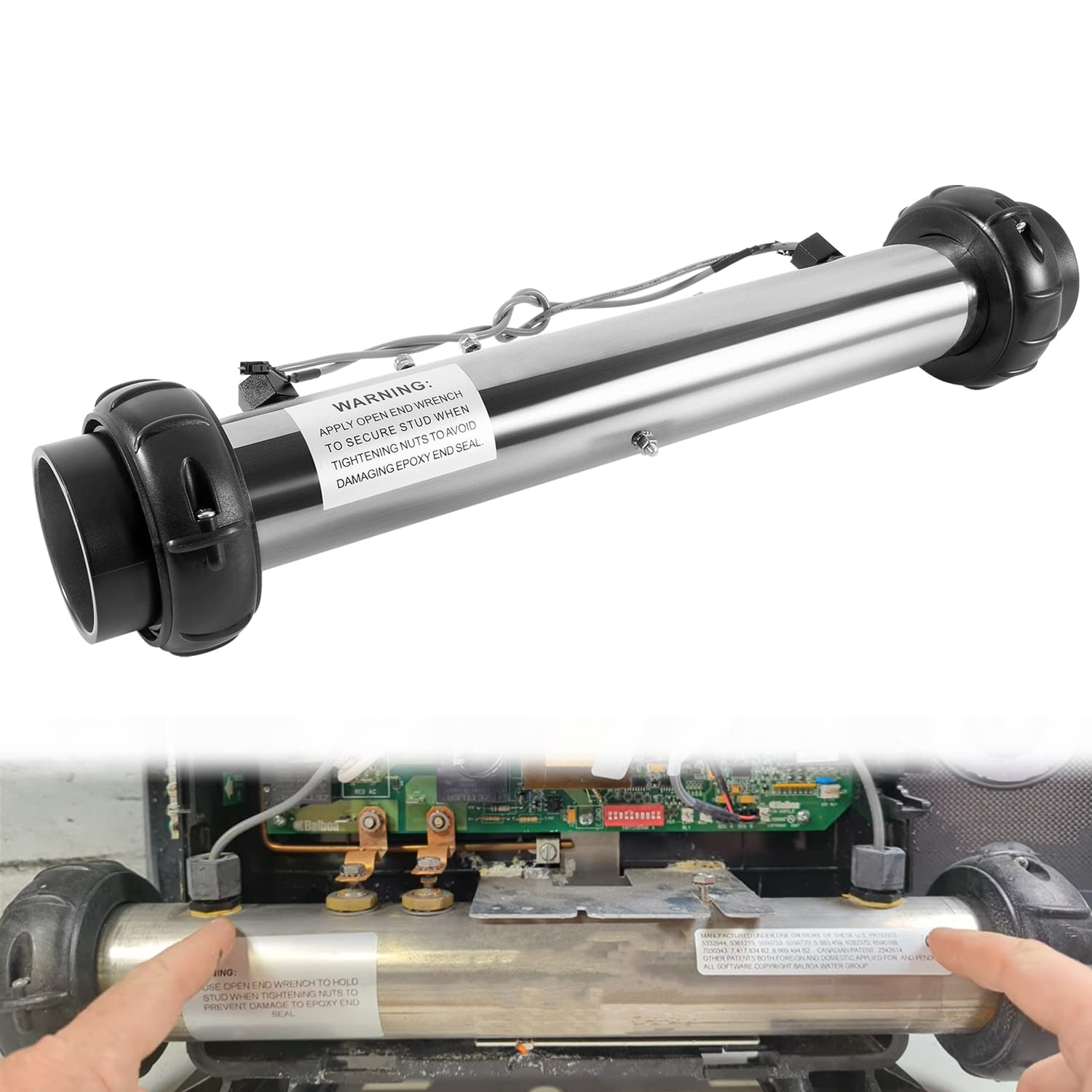

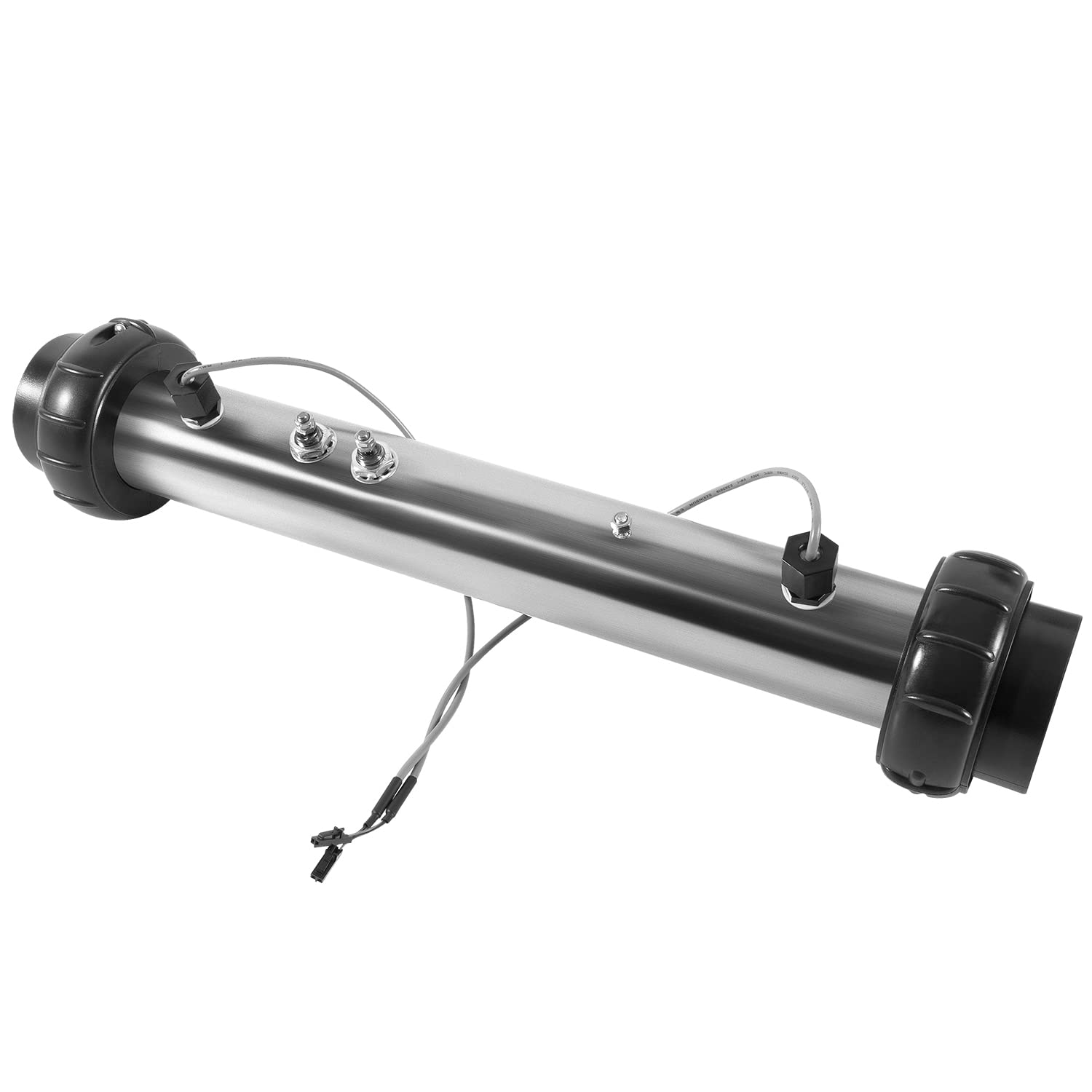

Balboa 58083 Replacement Hot Tub Heater Element 5.5KW 220V - Compatible with Balboa BP, VS & EL2001 Control Systems - VS M7 Spa Heater Assembly 25-175-1010 - Perfect for Spa Maintenance and Repair

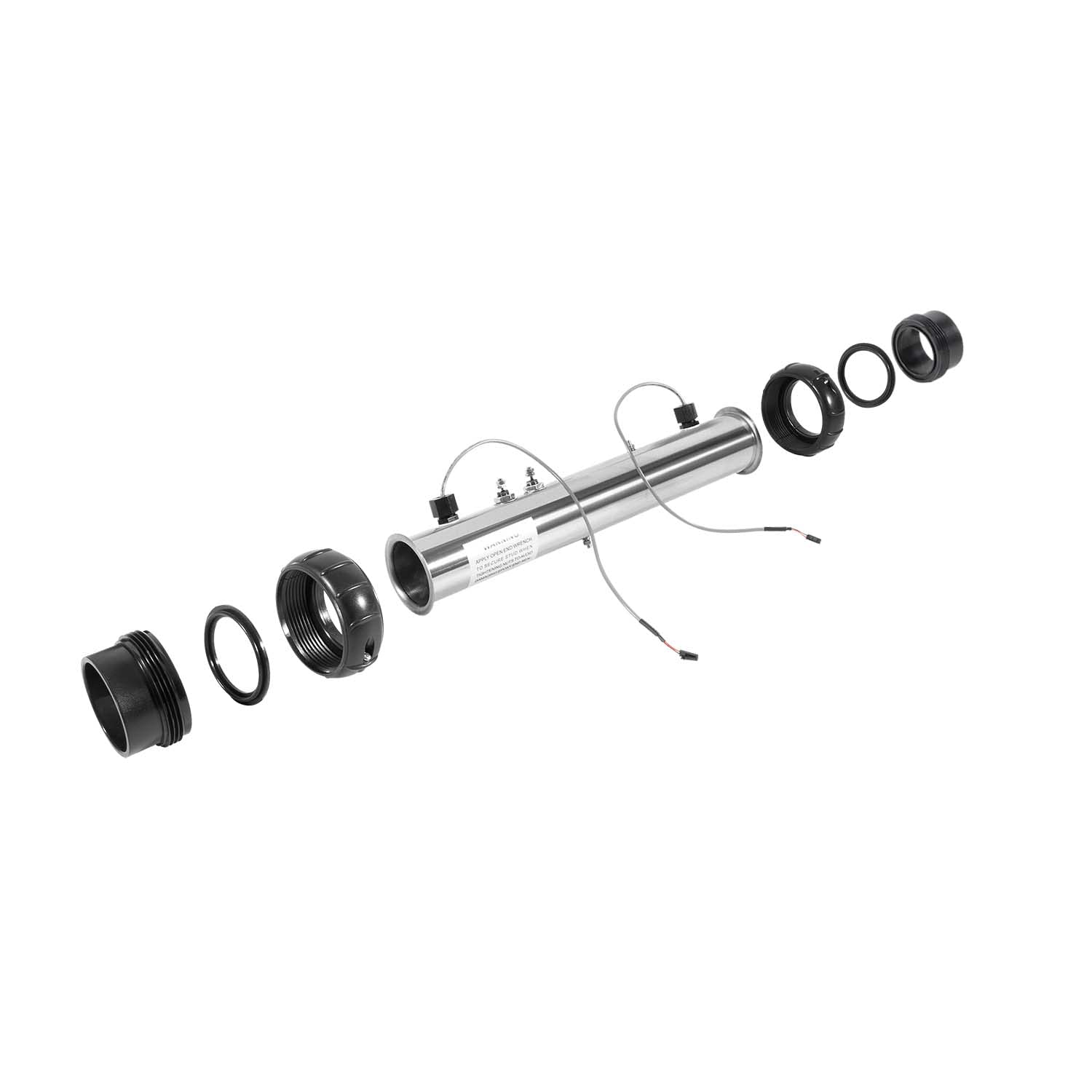

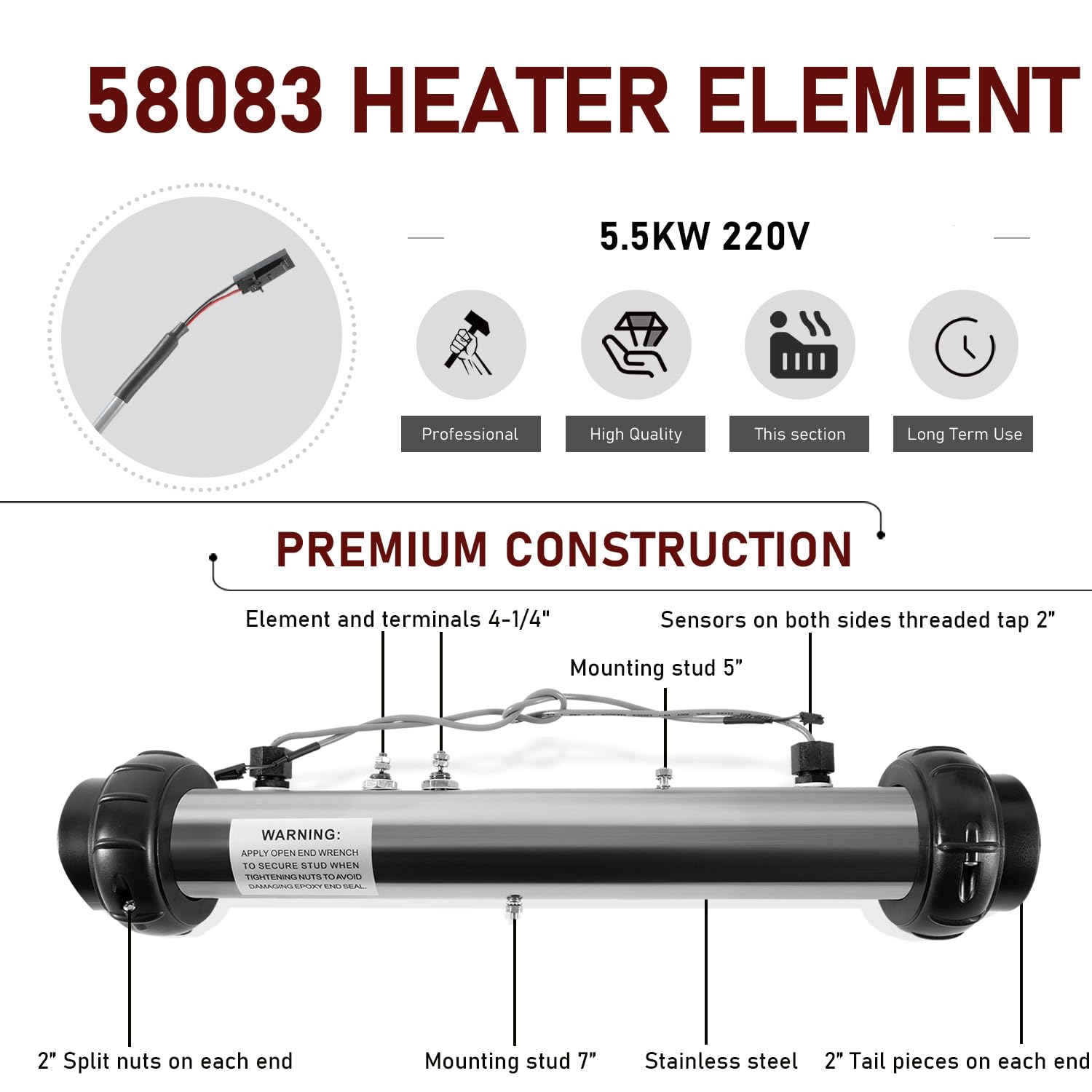

58083 Product Dimension Series: M7, LE, VALUE, EL Manifold Length: 15" Manifold Diameter: 2" Heating Element Included: Yes Kilowatt Rating: 4.0KW / 1.0KW Voltage Rating: 240V / 120V Stainless Steel: Yes Mounting Studs: Yes Number of Mounting Studs: 2 Wide Application Suitable for most Balboa heater.Replace the following part numbers (but not limited to)Balboa:58282, 55302, 55473, 58002, 58016, 58086, 58089, 58090, 58121, 58123, 58140, 58209, 58306Cal Spa:HEA14100450HydroQuip:26-0807-7S-KS, 25-58002-K, 26-58083-K, Therm Products C2500-0807-TPS Step 1 Disconnect the power supply of the equipment.Use an open end wrench to slowly crack the heater split nuts until the water in the pipe flows out Step 2 Locate the 2 sensors holder on the circuit board.Remove the 2 heater sensors by depressing the clip and gently pulling on the wire to remove each sensor cable Step 3 Use a 3/8” wrench to remove the 2 nuts holding the heater in place Step 4 Use a 3/8” wrench to remove the nuts on the copper straps.Then lift the copper straps Step 5 Use an open end wrench to loosen the heater split nuts and remove the old heater assembly and gaskets Step 6 Replace the new gaskets and install the new heater assembly, tighten the split nuts with an open end wrench. Step 7 Screw on the 2 nuts that holding the heater, insert the 2 heater sensors into the sensor bracket on the circuit board, make sure the copper strip is connected to the heater and tighten the nuts. Step 8 Put the cover on and screw on the 2 screws on the top of the enclosure.Turn on the water valve and pump, restore the power of the equipment, and test

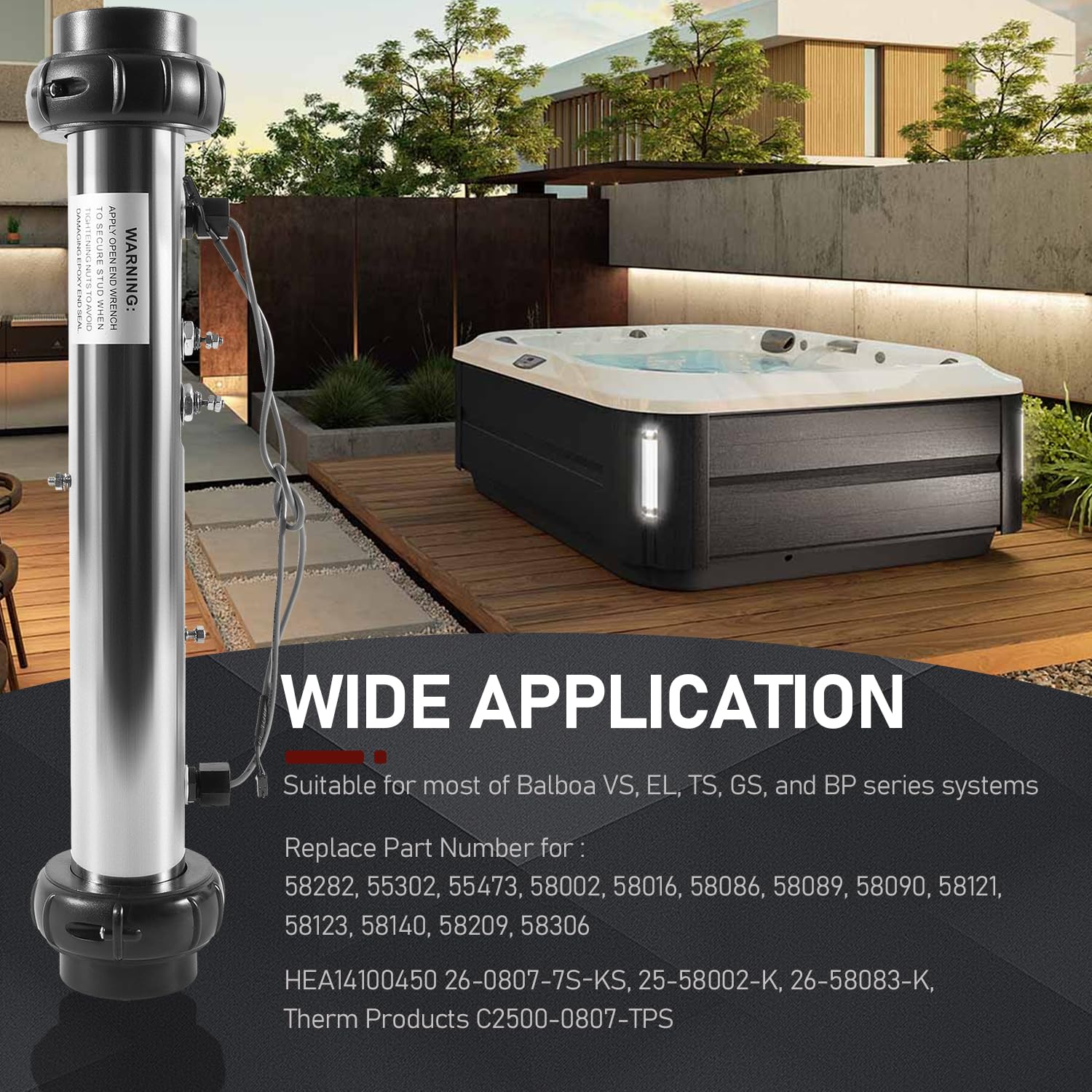

【Perfect Fitment】Suitable for most Balboa heater. Replace part number for 58282, 55302, 55473, 58002, 58016, 58086, 58089, 58090, 58121, 58123, 58140, 58209, 58306

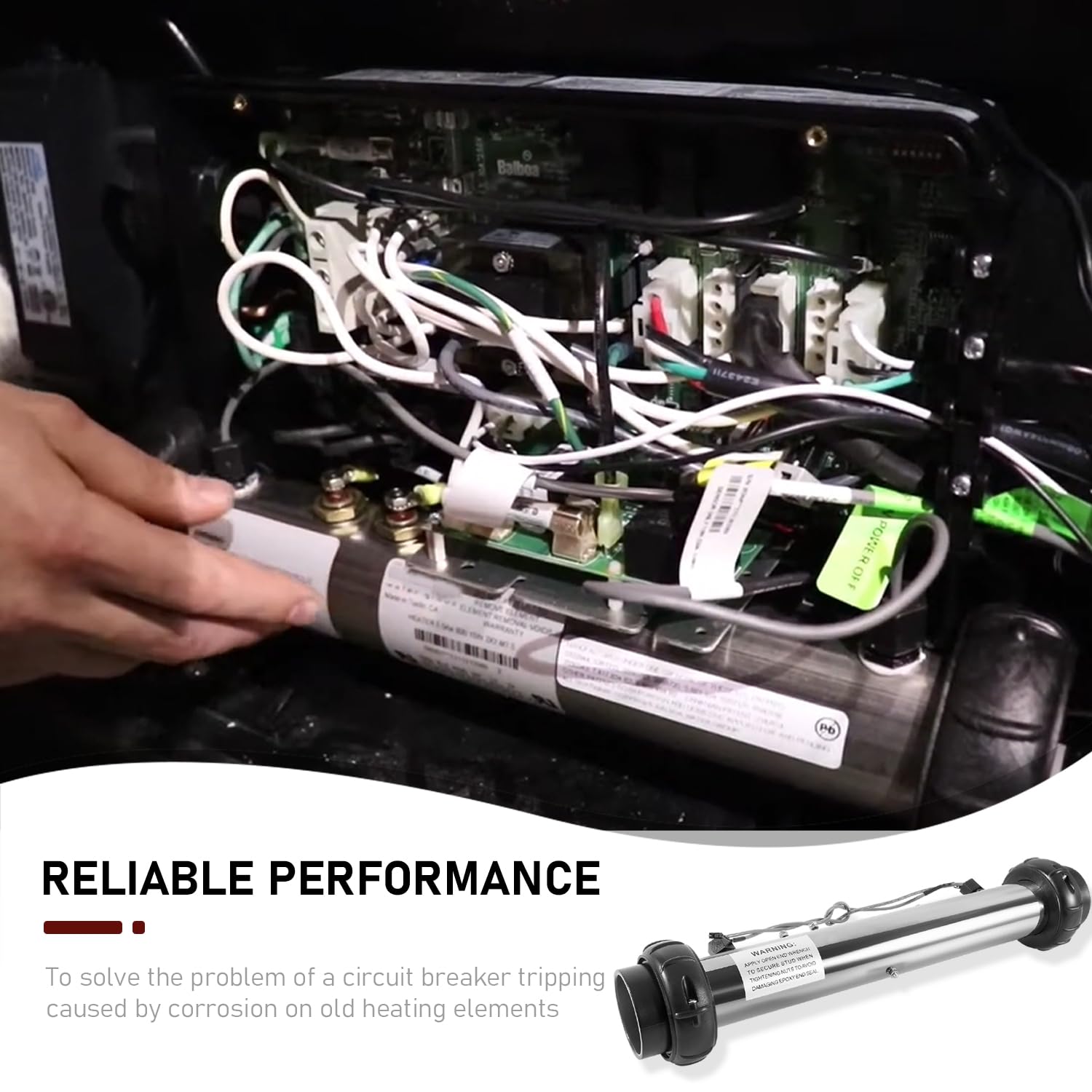

【Reliable Performance】Effectively solve the problem of circuit breaker tripping caused by corrosion of old heating elements. This heater is designed to replace your old or broken unit, ensuring smooth and uninterrupted operation.

【Superior Quality】Constructed of premium quality material, the heater embodies maximum durability, high strength and exceptional resistance to corrosion and rust, ensuring long term use. Meet or exceed OEM specification

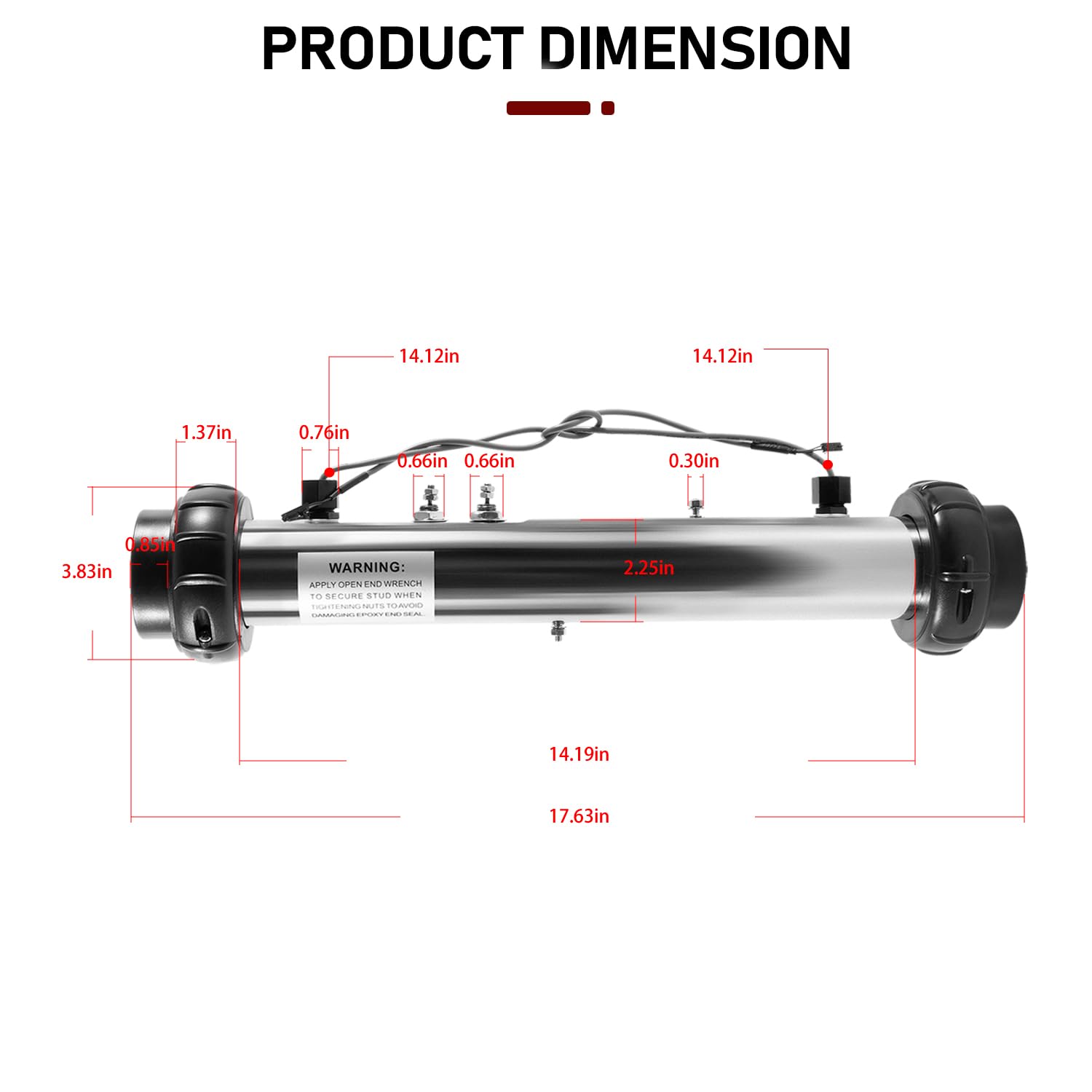

【Product Dimension】Manifold Length 15", Manifold Diameter 2", Kilowatt Rating 5.5KW / 1.375 KW, Voltage Rating 240V / 120V

【100% SATISFACTION GUARANTEE】 Our focus on products and customer services is 2nd to none. If your item is defective, incorrect, arrived damaged or any other problems, please contact us (include pictures if possible) and we will reply in 24 hours.
