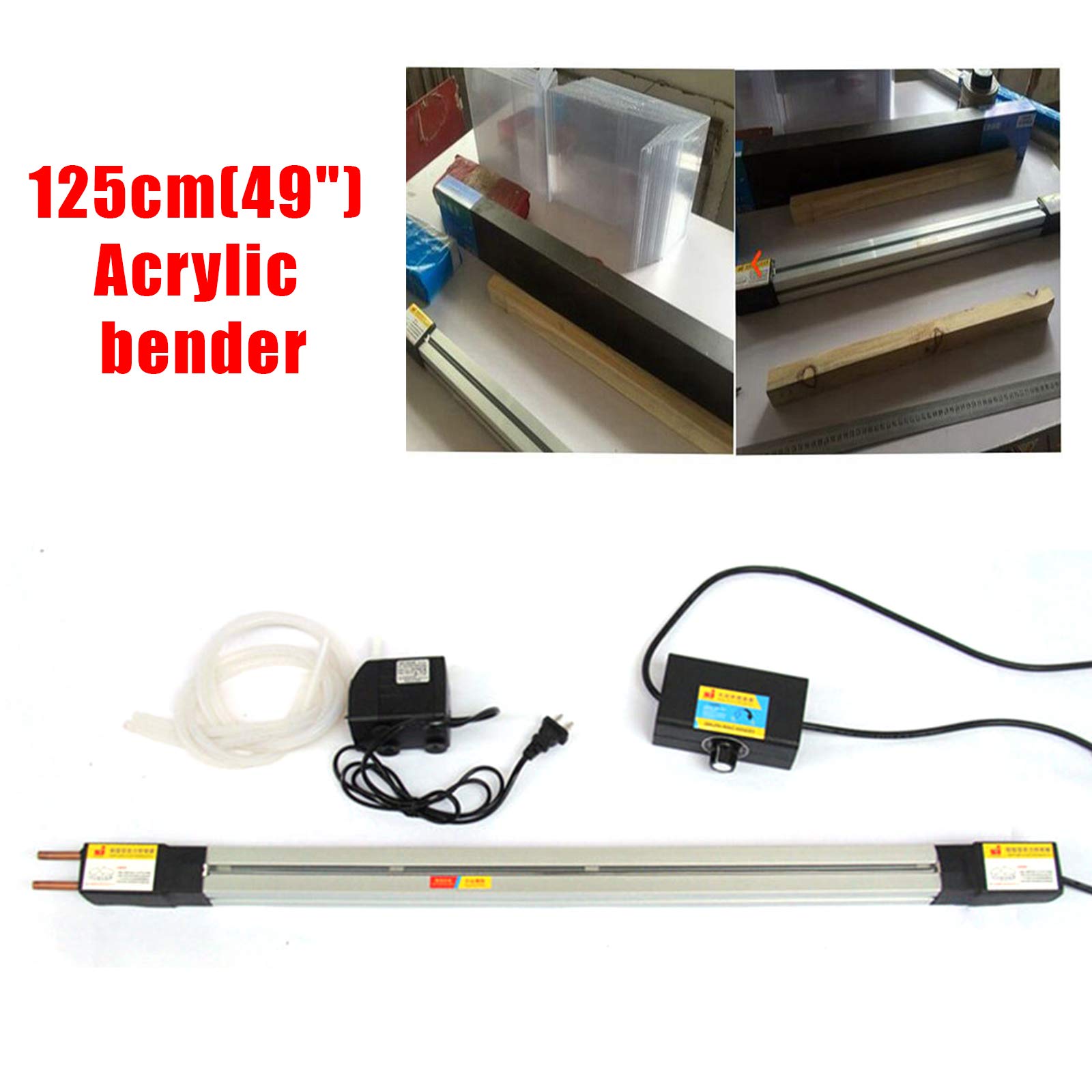

48" Acrylic Plastic PVC Bending Machine - 110V Electric Strip Heater with 1220mm Heating Length for 1-6mm Thickness | Perfect for Acrylic, PVC & Organic Board Bending | Ideal for Sign Making, Light Box Fabrication & DIY Projects

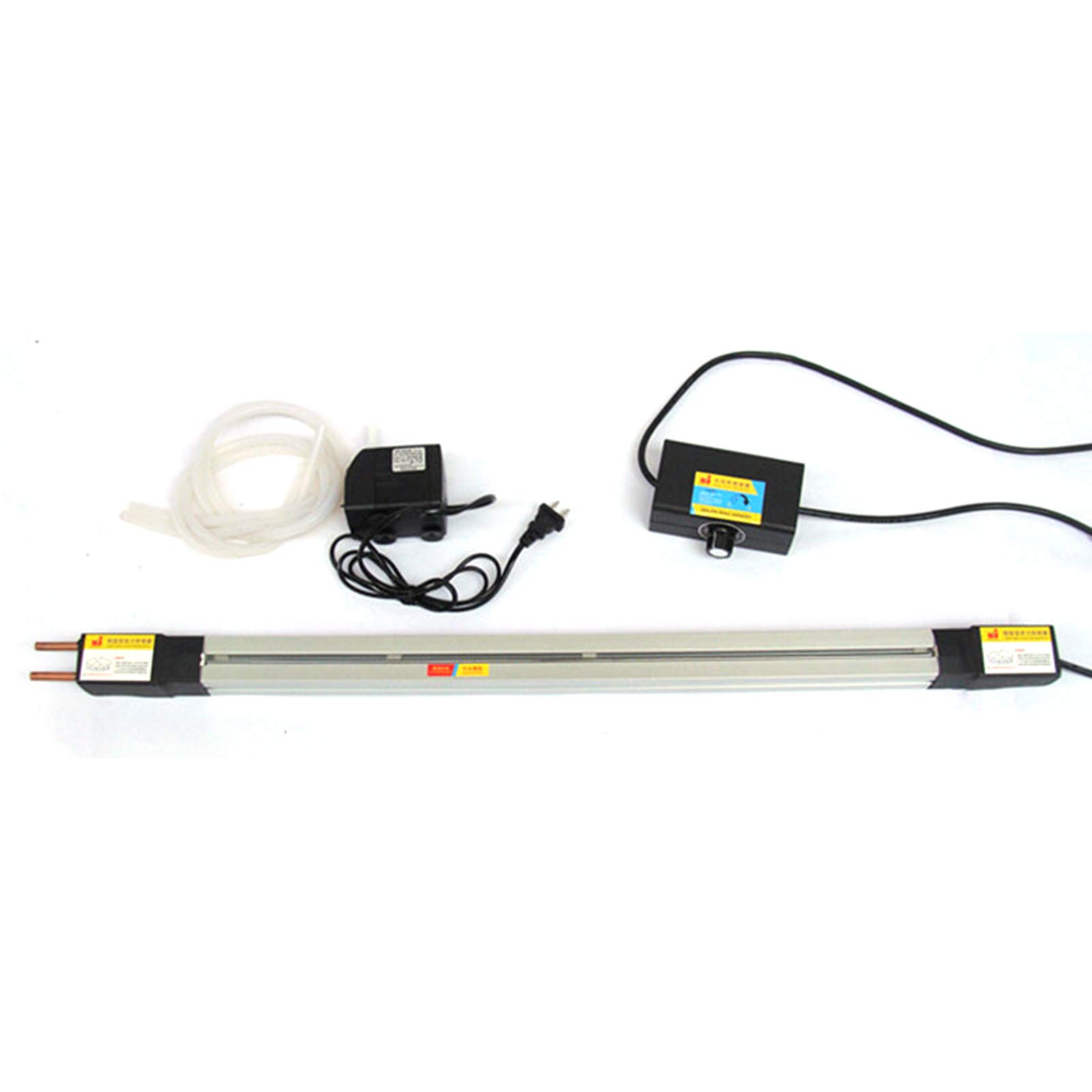

Specifications:Heating Peak: ZW-300 420 ℃, the other 250 ℃Heating Port Width: 8mmPower: 1500WGross Weight: 4.5kgInstructions:Keep a cooling tank (barrel) of more than 30 liters. First, connect the heater body and the submersible pump with a silicone hose. Place the submersible pump in the cooling bucket, connect the power supply of the pump, and wait for the water to circulate out. (Note: The water temperature of the machine will keep rising for a long time. Please replace the cold water clearly. The temperature of the circulating water should not drop abruptly. When the water temperature exceeds 50 degrees, the power supply of the heater should be cut off in time, and the circulating water should be replaced later).Connect the thermostat with the hot bender and connect it to 220V power supply. Adjust the knob of the thermostat controller. The clockwise direction is to raise the temperature, and vice versa. When adjusting, it is not appropriate to rotate too fast in order to avoid damaging the thermostat. (Note: It is advisable to slowly adjust the thermostat to a reddish heat pipe. Excessive temperature will cause damage to the hot bending material and affect the service life of the hot bender).When the heating pipe reaches the required temperature, it can place the plastic sheet which needs to be hot-bended on the heating trough. When the sheet is soft enough to be folded manually, it can bend at various angles. According to the different materials, the setting time is different. Please determine the setting time according to the actual situation.Packing List:1 X Acrylic PVC Bending Machine Heater1 X Water Pump2 X Silicone Tubes1 X Temperature Controller1 X Water Thermometer

【Adjustable Temperature】-The product temperature is uniform and the water is circulated to cool. There are water circulation cooling devices on both sides of the heating pipe to ensure that no thermal deformation occurs except for the places that need to be heated.

【Portable】-Lightweight and practical. Save space, heat-bend plastic sheets of various materials, such as thickness over 6 mm. The power supply and the water pipe are respectively connected at both ends. Water and electricity separation is safe, intuitive, easy to plug and unplug, easy to collect, and easy to assemble with the workbench.

【Simultaneous Heating】-Can be combined with multiple heaters to heat multiple bending points at once. It can be combined with the workbench to form a hot bending machine, or it can be used alone.

【The Main Purpose】-Widely used in decoration projects, sign making, display cabinets, aquarium packaging, lighting LED luminous characters, supermarket shelves, curtain walls, large light boxes, etc. Applicable materials acrylic, organic board, PVC and various thermoplastic materials.
