Thermomate 6.5 Gallon Electric Mini Tank Water Heater - 120V 1440W Instant Hot Water System for Kitchen, Bathroom & RV - Wall or Floor Mounted, UL Certified ES700 (Point of Use, Energy Efficient)

Previous page Next page 1 Space Saving 2 Instant Hot Water 3 Long Last Quality 4 Energy Saving High Efficiency Previous page Next page Multiple Functions thermomate ES Series Mini Tank Water Heater ES700 Buying Options ES400 Add to Cart ES250 Buying Options ES150 Buying Options ES1000 Add to Cart ES400B Add to Cart ES250B Add to Cart Customer Reviews 4.4 out of 5 stars 1,002 4.4 out of 5 stars 1,002 4.4 out of 5 stars 1,002 4.4 out of 5 stars 1,002 4.4 out of 5 stars 1,002 4.3 out of 5 stars 109 4.3 out of 5 stars 109 Price $218.49$218.49 $199.99$199.99 $169.99$169.99 $161.49$161.49 $329.99$329.99 $199.99$199.99 $179.99$179.99 Capacity 6.5 Gallons 4 Gallons 2.5 Gallons 1.32 Gallons 10 Gallons 4 Gallons 2.5 Gallons Max. Water Pressure 150 psi 150 psi 150 psi 150 psi 150 psi 150 psi 150 psi Temperature Range 50-149°F 50-149°F 50-149°F 50-149°F 90-150°F 50-149°F 50-149°F Electrical Requirements 12A / 120V 12A / 120V 12A / 120V 12A / 120V 15A / 120V 12A / 120V 12A / 120V Dimensions 17.7 W x 17.7 H x 14.6 D 14.5 W x 14.5 H x 12.9 D 12.95 W x 12.95 H x 11.5 D 11.42 W x 11.42 H x 9.65 D 24.5"H x 14.75"W 17.3"H x 12.6"W x 12.4"D 15.4"H x 11.4"W x 11.4"D Weight 26.5 lbs 19.8 lbs 15.4 lbs 11 lbs 40 lb 18 lb 14.8 lb Water Fittings 1/2" NPT 1/2" NPT 1/2" NPT 1/2" NPT 3/4" NPT 1/2" NPT 1/2" NPT Relief Valve ✔ ✔ ✔ ✔ ✔ ✔ ✔ Wire Type Plug-In Plug-In Plug-In Plug-In Hard Wired Plug-In Plug-In How Do Point-of-Use Electric Mini-Tank Water Heaters Work? The unit connects directly to a cold water source, which fills the tank and is heated with an electric heating element to the desired temperature until it's ready to be used. The water is released when a faucet or fixture is opened. What applications are point-of-use electric water heaters best for? Designed for single applications and small load requirements, these water heaters are commonly located under sinks, in small apartments, and in additions like side rooms and garages. What type of point-of-use electric water heater should I buy? Mini-tank water heaters preheat a small amount of reserved water until it's ready to be used. Tankless water heaters heat water on demand as it travels through electrical heating elements within the unit. What will happen if I connected this water heater to my hot water line? The cold water in the line will flow into the tank first and mix with the hot water there. The mini tank water heater will turn on heating until the hot water from your main water heater eventually reaches the mini tank Can this mini tank water heater be used for shower? A mini-tank water heater is not intended to service a shower because it requires a larger flow from 1.5gpm to 2.5gpm, while these mini tank capacity range from 1.3 gallons, 2.5 gallons and 4 gallons, to max 6.5 gallons.

No More Wait for Hot Water - Point of use 6.5 gallons mini tank water heater provides instant hot water where you need it with fast recovery, reducing standby loss. Thermal efficiency up to 99%

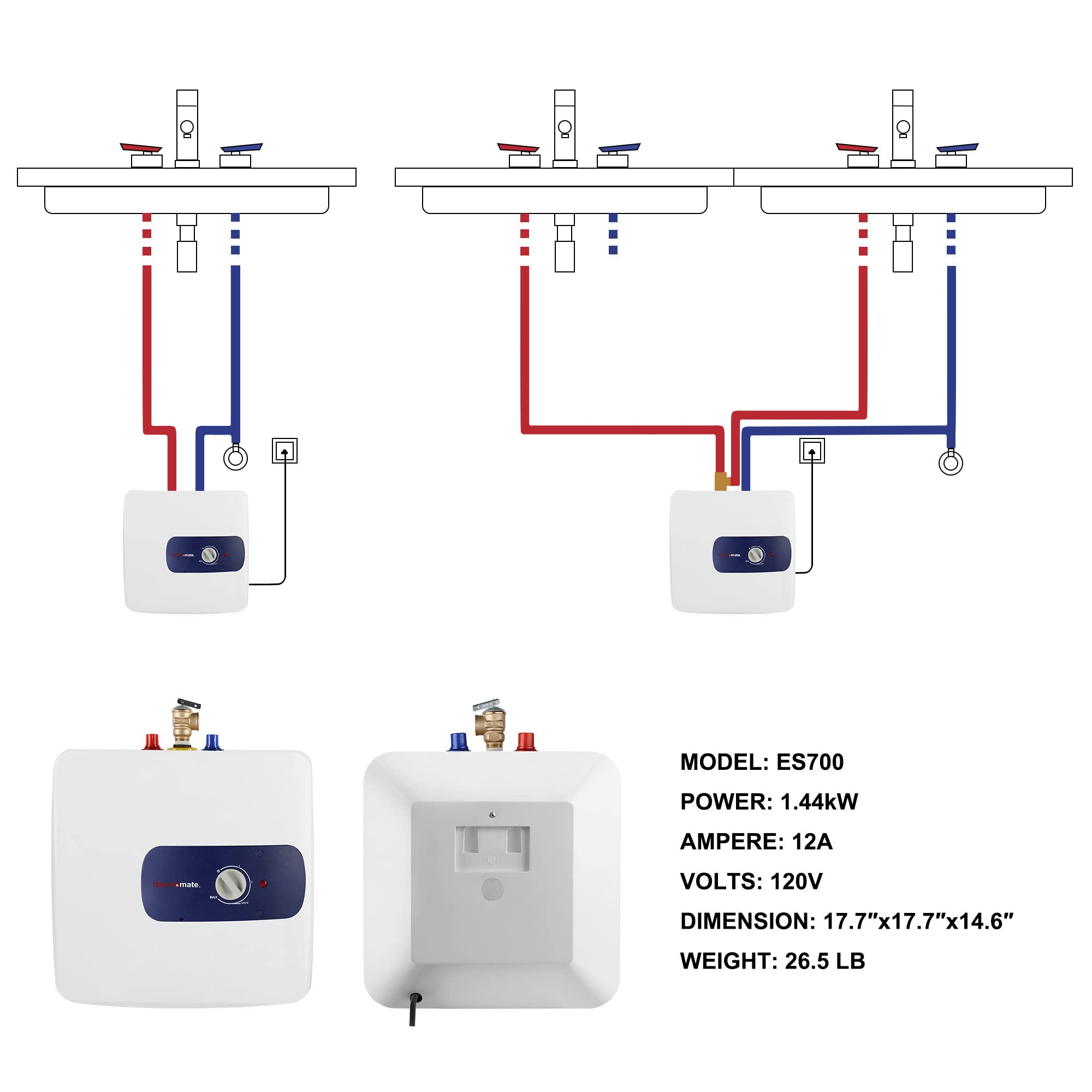

Easy Installations - Dimensions 17.7" x 17.7" x 14.6" compact design, can be wall or floor mounted under sink / counter, plug into 120V outlet, Nominal current 12amps

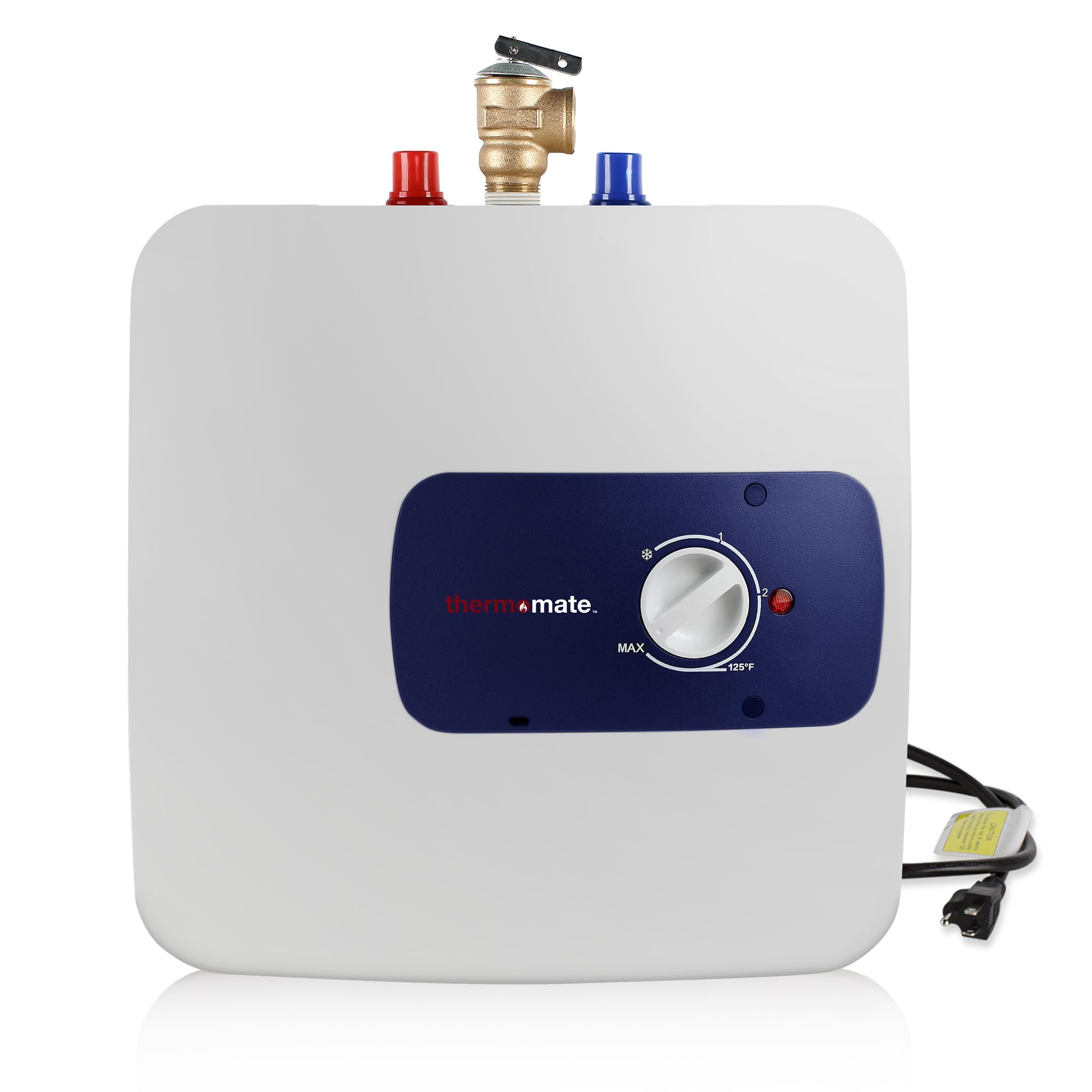

Adjustable Temperature - Thermostat with 3 temperature level settings, range from 50°F to 149°F with high temperature limit protection, also a freeze mode to prevent tank from freezing

Premium Quality & Durable - Glass-lined tank for great insulation, temperature and pressure relief valve included, UL Listed ensuring a long service life

Specifications and Warranty - Dimensions 17.7"H x 17.7"W x 14.6"D; Weight26.5lbs; Water connections 1/2" NPT, Electrical requirements 1.44 kW at 120 volts, plug-in connection with 2 feet power cord; Max water pressure150PSI; Nominal current 12A. 3-year Limited Warranty for the tank, 1-year warranty for parts and 24hours customer service
